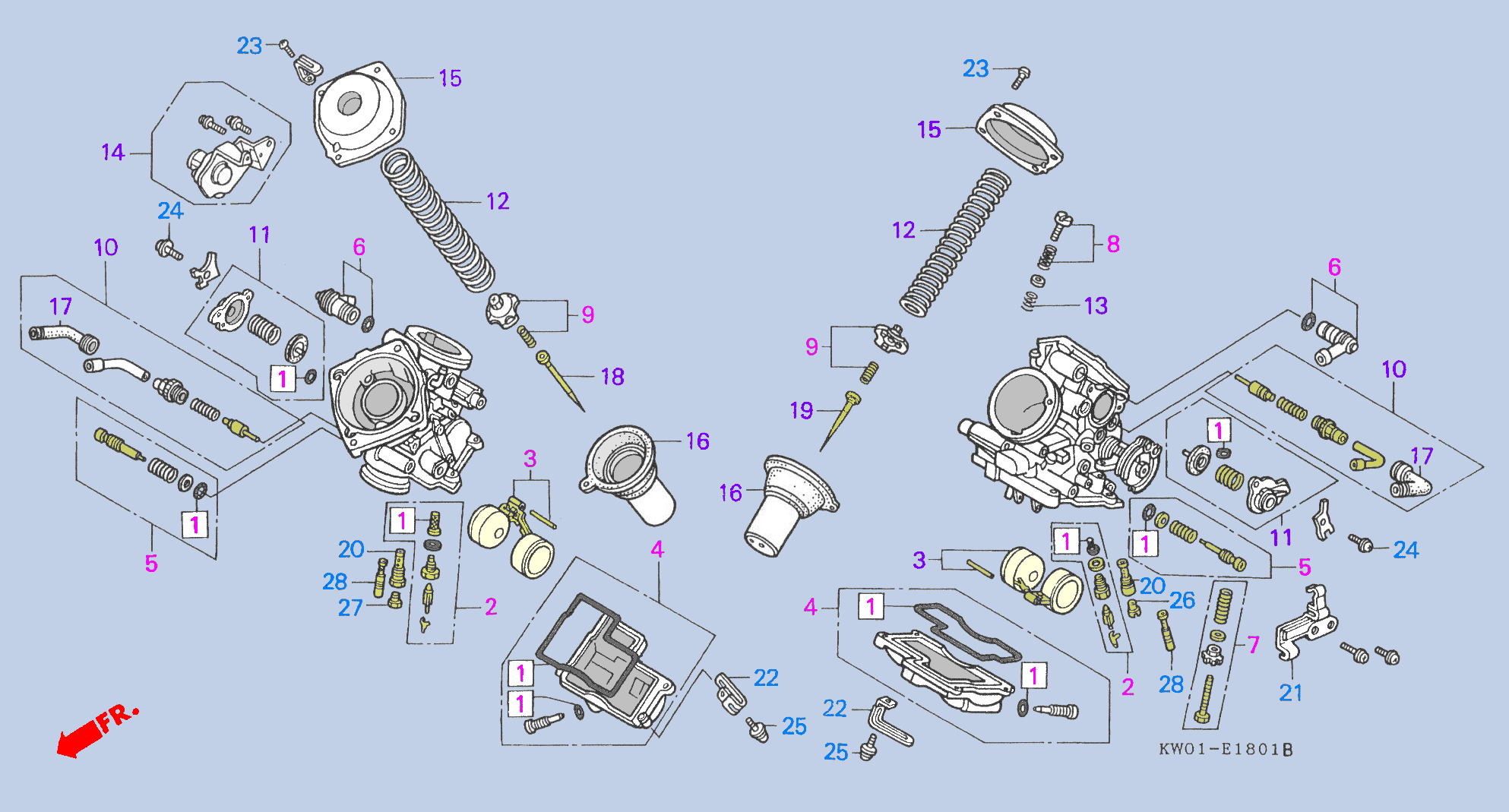

No. Part No. Part name NT400J NT400K NT400L NT650J NT650K NT650L 1st Machine Last Machine
1 16010-MM9-621 Gasket/Seal set. 2 - - - - - ---------- VDF1C B
1 16010-MM9-621 Gasket/Seal set. - - - 2 - -
1 16010-MR1-691 Gasket/Seal set. 2 - - - - - VDF1C C
1 16010-MR1-691 Gasket/Seal set. - 2 - - 2 -
1 16010-MN8-910 Gasket/Seal set. - - 2 - - 2
2 16011-MR1-004 Valve set, float. 2 2 - - - -
2 16011-KW0-720 Valve set, float. - - 2 - - -
2 16011-MR6-671 Valve set, float. - - - 2 2 -
2 16011-MN8-910 Valve set, float. - - - - - 2
3 16013-ML7-004 Float set. 2 2 2 2 2 2
4 16015-MG9-691 Chamber set, float. 2 - - - - - ---------- VDF1C B
4 16015-MR6-671 Chamber set, float. 2 - - - - - VDF1C C
4 16015-MN8-014 Chamber set, float. - - 2 - 2 2
4 16015-MN8-004 Chamber set, float. - - - 2 - -
5 16016-MN8-004 Screw set. 2 2 2 2 2 -
5 16016-MN8-910 Screw set. - - - - - 2
6 16026-MR1-004 Joint, set. 2 2 2 - - -
7 16028-ML7-004 Screw set B 1 1 - 1 1 -
7 16028-MN8-910 Screw set B - - 1 - - 1
8 16029-KE8-004 Screw set C 1 1 - - - -
8 19029-MN4-003 Screw set - - 1 1 1 1
9 16037-ME5-671 Plate set. 2 2 2 - - -
9 16037-MB4-671 Plate set. - - - 2 2 2
9 16037-MN8-004 Plate set. - - - - 2 -
10 16046-MR1-004 Valve set, starter. 2 2 2 - - -
10 16046-MN8-004 Valve set, starter. - - - 2 2 2
11 16048-KW0-004 Valve set, air cut. 2 2 2 - - -
11 16048-MR1-004 Valve set, air cut. - - - 2 2 2
12 16051-MB0-671 Spring. 2 2 2 - - -
12 16051-MB4-671 Spring. - - - 2 - -
12 16051-MN8-004 Spring. - - - - 2 2
13 16052-ME9-672 Spring. 1 1 1 1 1 1
14 16060-MN8-910 ? ASSY. - - 1 - - 1
15 16107-MM9-621 Top. 2 2 2 - - -
15 16107-MM8-004 Top, COMP. - - - 2 2 2
16 16111-KW0-004 Piston COMP. , vacuum. 2 2 - - - -
16 16111-KW0-720 Piston COMP. , vacuum. - - 2 - - -
16 16112-MN8-004 Piston COMP. , vacuum. - - - 2 - -
16 16111-MN8-752 Piston COMP. , vacuum. - - - - 2 -
16 16111-MN8-910 Piston COMP. , vacuum. - - - - - 2
17 16118-ME9-671 Cap, cable sealing. 2 2 2 2 2 2
18 16151-KW0-004 Needle COMP., Jet. 1 1 - - - -
18 16151-MV1-700 Needle COMP., Jet. - - 1 - - -
18 16151-MN8-004 Needle COMP., Jet. - - - 1 - -
18 16131-MN8-004 Needle COMP., Jet. - - - - 1 -
18 16151-MN8-910 Needle COMP., Jet. - - - - - 1
19 16151-KW0-004 Needle COMP., Jet. 1 1 - - - -
19 16151-KW0-720 Needle COMP., Jet. - - 1 - - -
19 16151-MN8-004 Needle COMP., Jet. - - - 1 1 -
19 16151-MN8-910 Needle COMP., Jet. - - - - - 1
20 16165-MF5-671 Holder, needle jet. 2 2 2 - - -
20 16165-ME9-671 Holder, needle jet. - - - 2 - -
20 16165-MN8-004 Holder, needle jet. - - - - 2 2
21 16169-MM9-621 Stay COMP., wire. 1 1 1 1 1 1
22 16179-ME9-751 Clip, plate. 2 2 2 2 2 2
23 93500-04010-0A ? 4x10 8 8 - 8 8 -
23 93500-04010-1A Screw, pan, 4x10 - - 8 - - 8
24 93892-04012-00 Screw, washer, 4x12 4 4 - 4 4 -
24 93892-04012-10 Screw, washer, 4x12 - - 4 - - 4
25 93892-04016-00 Screw, washer, 4x16 8 8 - 8 8 -
25 93892-04016-10 Screw, washer, 4x16 - - 8 - - 8
26 99101-393-1380 Jet, main, #138 1 - - - - - --------- VDF1C A
26 99101-393-1380 Jet, main, #138 - - - 1 1 -
26 99101-393-1350 Jet, main, #135 1 - - - - - VDF1C B
26 99101-393-1350 Jet, main, #135 - 1 1 - - -
26 99101-393-1320 Jet, main, #132 - - - - - 1
27 99101-393-1450 Jet, main, #145 1 - - - - - --------- VDF1C A
27 99101-393-1420 Jet, main, #142 1 - - - - - VDF1C B
27 99101-393-1420 Jet, main, #142 - 1 - 1 - -
27 99101-393-1320 Jet, main, #132 - - - - 1 -
27 99101-393-1400 Jet, main, #140 - - 1 - - 1
28 99103-427-0350 Jet, slow, #35 2 2 - - - -
28 99103-437-0380 Jet, slow, #38 - - 2 - - -
28 99103-437-0420 Jet, slow, #42 - - - 2 2 2
|
